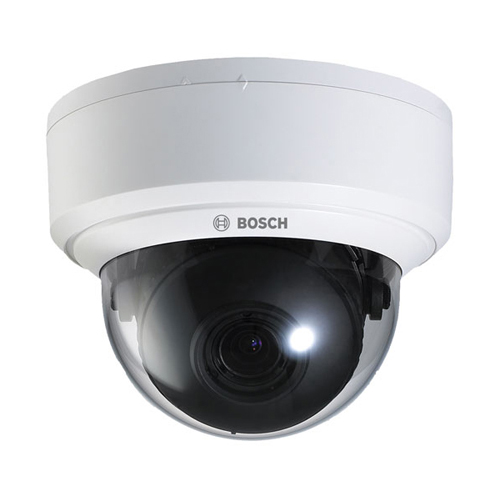

Analog Dome Camera BOSCH รุ่น VDC-275-10

รหัสสินค้า :   001759
ลักษณะสินค้า :   กล้องโดมมาตรฐานความละเอียด 650TVL
การรับประกัน :   2 ปี
ราคา :   N/A

ราคารวมภาษี 0.00 บาท

หมายเหตุ: ขายส่งต่างจังหวัด ขายติดตั้งในกรุงเทพฯ ปริมณฑล
Social Share:





รายละเอียดสินค้า

650TVL 960H Dome Camera - Varifocal 2.8-10.5mm, (Indoor Use)

arrowImage Sensor 1/3" CCD, 960H
arrowHorizontal resolution 720 TVL
arrowMinimum Illumination 0.12 lux (color) 0.07 lux (ICR, B/W), F1.2, 50IRE)
arrowLens type Varifocal DC Iris f=2.8 to 10.5 mm
arrowSignal-to-Noise Ratio 50 dB
arrowDimensions Ø127 x 120 mm.
arrowSupply Voltage 24 VAC (±10%) / 12 VDC (±10%)
arrowPower Consumption 3.6 W max. / 0.3 A


These indoor domes are compact, stylish surveillance cameras that offer excellent resolution in variable lighting conditions. The high performance 960H 1/3‑inch CCD sensor provides a resolution of 720TVL. The dome is available in electronic and true day/night
versions. The camera is an ideal solution for demanding scene conditions. The Day/Night feature ensures the highest image quality possible at any time. Depending on the available light, the camera automatically switches from color to monochrome. The camera is easy to install and can be adjusted around 3 axes. Privacy zones and motion detection functions can be set up in the handy camera menu system.

VDC-275-10 | Technical Specifications

ระบบ PAL หรือ NTSC
จำนวนพิกเซลในภาพถ่าย (H x V) 976 x 582 (PAL)976 x 494 (NTSC)
อิมเมจเซนเซอร์ 960H, 1/3" CCD, ความละเอียดเซนเซอร์ 720TVL
สัญญาณภาพขาออก Composite video: 1 Vpp, 75 โอห์ม
ระบบซิงค์ การซิงค์แบบ Internal และ Line-Lock
อัตราส่วน S/N (ความคมชัด, ปิด AGC) 50 dB ต่ำสุด
ความละเอียดจริง 650 สาย TV
ไฟส่องขั้นต่ำ เลนส์ Varifocal (F1.2, 50IRE) 0.12 lx (สี) 0.07 lx (ICR, B/W)
ชัตเตอร์แบบแมนนวล 1/50 – 1/10,000 (PAL)1/60 – 1/10,000 (NTSC)
การลดสัญญาณรบกวนด้วยดิจิตอล 2DNR
สมดุลแสงสีขาว ATW, Push, User1, User2, Anti CR, Manual, Push lock
การชดเชยแสง ปิด/BLC/HLC
การไล่โทนเพื่อความคมชัด (Adaptive Tone Reproduction) เปิด, ปิด
AGC เปิด, ปิด
Day/Night อัตโนมัติ, สี, ขาว/ดำ
การลงสี เปิด, ปิด
การตรวจจับการเคลื่อนไหว เปิด, ปิด (โซนที่โปรแกรมได้ 4 โซน)
ความเป็นส่วนตัว เปิด, ปิด (โซนที่โปรแกรมได้ 4 โซน)
กระจก เปิด (แนวนอน), ปิด
ความคมชัด 0 ‑ 255
ภาษา OSD อังกฤษ, ญี่ปุ่น, เยอรมัน, ฝรั่งเศส, รัสเซีย, โปรตุเกส, สเปน
ชนิดเลนส์ Varifocal DC Iris f=2.8 ถึง 10.5 มม.
ขนาด (ØxH) 127 มม. x 102 มม.
น้ำหนัก 280 กรัม
แรงดันของแหล่งจ่ายไฟ 24 VAC (±10%) 12 VDC (±10%)
การสิ้นเปลืองพลังงาน 3.6 W สูงสุด / 0.3 A
อุณหภูมิในการทำงาน -10 °C ถึง +50 °C (14 ºF ถึง +122 ºF)
ความชื้นในการทำงาน 30% ถึง 80% RH
อุณหภูมิในการเก็บรักษา -20 °C ถึง +60 °C (-4 ºF ถึง +140 ºF)
ความชื้นในการจัดเก็บ 20% ถึง 90% RH
